ExcelTest Monitor & Control

PRU-2000 and TDL series data loggers to monitor the pasteurization process in
beverage and food industries. Lifetime battery more than 8 years
Single and dual temperature channels, temperature and pressure models available.
Detachable temperature probe to fit every model of bottle or can.
Include Winpasture Software, for print Reports w ith graphs or tables.
calculate Units (PU, FO), T max, time, etc.

DATA LOGGER
&
DATA ACQUISITION SYSTEM

Smart Label with Temperature Logger

LOW COST, Small, Rugged, Self-sufficient Cold-Chain Monitoring Packing Label system.
Time and temperature monitoring labels are flat, about the size of a sugar packet (45mm x 57mm), and are able to digitally record time and
temperature of a product’s environment during the entire distribution cycle.
First, LEDs indicate if a shipment remained within acceptable temperature specifications. A flashing green LED indicates conditions were
always within acceptable parameters; yellow indicates conditions drifted outside of acceptable range and data should be downloaded from
the label for further Examination. Temperature range: Can be customise, Acc.: ± 0.5oC)
Logger Memory: 4kb readings (80 days of readings taken at 30 minute intervals)
Logging interval: Preprogrammed for 5 minute to 50 minutes.
Shelf Life: 6 months from date of purchase

ExcelTemp Temperature & ExcelTH Temp/RH Logger

	LOW COST, Small, Rugged, Self-sufficient Cold-Chain Monitoring system Globally unique ID address Temperature range: -300C to +85oC (Res.: 0.5oC, Acc.: ± 1.0oC) R. Humidity range: 0 - 100% (Others range also available upon request) Logger Memory: 2048 readings (6 weeks of readings taken at 30 minute intervals) Logging interval: Adjustable from 1 minute to 4 hours 15 minutes. Battery Lifetime: > 10 years or up to 1 million Temperature measurements

MicroLite USB Temperature logger: EC

Temperature: -40º to 80º C (res. 0.2º C; accuracy. ±0.2º C)
2 buttons & 7 segments 3 digit LCD
View up to 30 days of min/max
USB Port
Sampling rate from every 10 sec to every two hours
Memory of 16,000 samples
Built in calendar and clock
IP 65

MicroLog Datalogger: EC600 (Temperature), EC650 (Temperature & Humidity)


	Temperature: -30º to 50º C (res. 0.5º C; accuracy. ±0.6º C) Humidity: 0 to 100% (res. 0,5% ; accuracy ±3% @ 25º C) 1 external sensor: light; contact; pH; voltage; current and more… 2 buttons & 7 segments 2 digit LCD View up to 30 days of min/max Serial Port (RS-232) , IrDA for printer and PC Sampling rate from every 10 sec to every two hours Memory of 16,000 samples Built in calendar and clock Dimensions: diameter - 72 mm; thickness 23 mm Weight: 55 g IP 65 for EC600 model and IP60 for model EC650

MicroLog Datalogger (10 bit): EC700 (Temperature), EC750 (Temperature & Humidity)

Temperature: -40º to 80º C (res. 0.2º C; accuracy. ±0.2º C)
Humidity: 0 to 100% (res. 0.1% ; accuracy ±3% @ 25º C)
1 external sensor: light; contact; pH; voltage; current and more…
2 buttons & 7 segments 3 digit LCD
View up to 30 days of min/max
Serial Port (RS-232) , IrDA for printer and PC
Sampling rate from every 10 sec to every two hours
Memory of 52,000 samples
Built in calendar and clock
Dimensions: diameter - 72 mm; thickness 23 mm
Weight: 55 g
IP 65 for EC700 model and IP60 for model EC750

MicroLog External Sensors

Temperature (-50º to 100º C) 2.5m length and 8m length, Needle probe option -cable length 2.5m
Light (0 a 5000 Lux)
pH (0 - 14)
Contact
Current (4 - 20 mA)
Voltage (0 a 10 V)
PT100 (-10 to 10) or (-100 to 120)
Conductivity (0 to 20 mS)

MicroLog Alarm Cradle

Alarm device
Communication: Serial and USB
Power: Battery or external
Connectors for external sensors and external antenna
OC to activate external device when alarm is crossed
Terminal board for: External power , external sensor, contact sensor , OC low and OC high alarm

ExcelEnvironmetal Intelligent Monitoring Solution:
DataNet Wireless Data Acguisition System with Email & SMS Alarm

	ZIgBee 2.4Ghz License-free Frequency RF Band Range: 800m (repeater to Receiver), 80m datalogger to Repeater/Receiver. Reliable mesh network of up to 65,000 units Record 4-20mA, 0-1v, Pulse counter, Pt-100, 2-wires, NTC, Thermocouple J, K and T Data displayed in numeric, or graphical display forms On-line retrieval and display of the collected data in real-time Map View display of all loggers’ location with the measured data New sensors definition Ability to read the defined sensor’s units on the logger’s display Full calibration of the loggers via the software Documentation and filing Alarm levels on graphs Export (CVS or Excel) and import to and from spreadsheets Analytical functions, for professional analysis of the collected data Manual backup of calibration setting Over-the-air firmware update Data save in DataNet Format & Text format option. Result: data can be integrated with any data base Data User defined Alarm/Pre-Alarm Email & SMS Alerts option. Power: B or rechargeable or external Multiple alarm including SMS & email. Applications: Indoor Environmental Monitoring, record & alert Indoor Air Quality Monitoring Freezer Monitoring, record & Alert Lab Monitoring, Server room monitoring, Utilities monitoring, etc

Receiver/Repeater

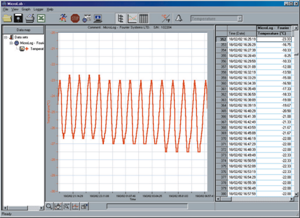

DATAPASS (21FDAPart11) Software

For compliance
with the
United States
Food and Drug
Administration
Title 21 Code of
Federal
Regulations Part
11

	The dual program software package achieves compliance with FDA Title 21 CFR Part 11 with: "MicroLab" or “MicroLab Plus” and “DatPass”. The DatPass software is the administration software, which among other features defines the users that can log onto the MicroLab or MicroLab Plus software, their passwords and the digital signatures the users are permitted to sign data within electronic records (files). The MicroLab or MicroLab Plus software is used to access the electronic records, display the logger data, analyze the data and allow the user add the appropriate digital signatures to the electronic records, among other features. An additional security feature is the serial port dongle, without which the MicroLab or MicroLab Plus and DatPass software packages will not operate.

Temp1000 Series Rugged, Submersible, Intrinsically Safe Temperature Recorder


	Temperature Range: -40 ºC to +125 ºC Available model with Intrinsically Safe up to 0.1 ºC resolution, 0.5 ºC accuracy Stainless steel or aluminum enclosure 32,767 reading storage

ThermoVault - Oven Profiling Temperature Recorder

0.1 ºC resolution, 0.5 ºC accuracy
Will operate up to 400 ºC for 10 minutes
16,383 reading storage

Pasteurization Monitor Logger

Temperature & Humidity Logger

The DL-1 and DL-2 are a new, low cost, temperature and relative humidity data loggers for use wherever these parameters need to be
monitored.
Museums, hospitals, pharmacy, laboratories, schools, transport, agriculture, and many others.
The DL-1 a 14Bit device that measures Temperature, one internal and one optional external channel.
The DL-2 a 12 Bit device measures Relative Humidity & Temperature with self contained sensors.
Size is 65x65x28mm ABS plastic Temperature range -40 to + 85 degrees C, RH range 0 to 100%RH

SOXXX & ROXXX Series Temperature Logger




	Available Model: 1 x IntTemp (With/Without Display) 1 x ExtTemp 2 x ExtTemp 2 x Int&ExtTemp 4 x ExtTemp 2 x ExtTemp + 2 x Binary

Temperature Range: -30 to +80°C, -40 to +80°C logger R0110
Accuracy: Pt-1000 external probe ±0.2°C from -50 do +100°C; Internal Sensor: ±0.4°C
Resolution: 0.1°C
large data memory 32000 values
large dual line display with special symbols, switchable
optional display of minimum and maximum measured values (reset of min/max memory from PC or by magnet)
dual level alarm is enabled for each channel, alarm is indicated by blinking of the value on the LCD display or LED diode
two alarm modes are enabled: instant or with memory (detected alarm is indicated permanently till alarm memory is
cleared from the PC)
robust case, easy installation, locking enabled
low power consumption from battery, up to 7 years lifetime, easy replacement of the battery
indication of remaining battery life
standard temperature sensor is Pt1000, switchable to Ni1000/6180ppm external probes at range -50 to +150°C
it is possible to combine temperature measurement with logging of contact state (e.g. door contact)
logging start/stop is enabled in several ways: at certain time and date programmed from computer, by delivered magnet
or depending on binary input state
also special logging mode is enabled, when logging runs only, if some of measured values are out of adjusted alarm
limits
each logger is possible to describe with text of maximum 32 characters
each channel is possible to describe with text of maximum 16 characters
password protection is enabled to prevent unauthorized manipulation with logger

S3XXX & R3XXX Series Temperature & Humidity Logger




		Available Model: 1 x IntTemp/RH (With/Without Display) 1 x ExtTemp/RH (with/Without Display) 1 x IntTemp/RH + 1 x ExtTemp 1 x IntTemp/RH + 2 x0..5V

Temperature Range: -30 to +80°C, -40 to +80°C logger R0110
Accuracy: Pt-1000 external probe ±0.2°C from -50 do +100°C; Internal Sensor: ±0.4°C
Accuracy of Humidity measurement: 2.5% RH from 5-95%RH at 23°C
Accuracy of dew point: 0.5°C from 30-95%RH
Resolution: 0.1°C / 0.1%RH
large data memory 32000 values
large dual line display with special symbols, switchable
optional display of minimum and maximum measured values (reset of min/max memory from PC or by magnet)
dual level alarm is enabled for each channel, alarm is indicated by blinking of the value on the LCD display or LED diode
two alarm modes are enabled: instant or with memory (detected alarm is indicated permanently till alarm memory is cleared from
the PC)
robust case, easy installation, locking enabled
low power consumption from battery, up to 7 years lifetime, easy replacement of the battery
indication of remaining battery life
standard temperature sensor is Pt1000, switchable to Ni1000/6180ppm external probes at range -50 to +150°C
it is possible to combine temperature and RH measurement with measurement of two user calibrated voltage signals 0-5V from
any transducer
logging start/stop is enabled in several ways: at certain time and date programmed from computer, by delivered magnet or
depending on binary input state
also special logging mode is enabled, when logging runs only, if some of measured values are out of adjusted alarm limits
each logger is possible to describe with text of maximum 32 characters
each channel is possible to describe with text of maximum 16 characters
password protection is enabled to prevent unauthorized manipulation with logger

ThermaData dual Channel Temperature Recorder

This digital temperature datalogger has two external sensors.
The two LED indicators show logging and alarm status.
Storage capacity 2,000 readings per channel. 2 year battery life.
-40 to +125°C / ± 0.5°C

Graphtec Multi-Channel Measurement Logger

	Various enhanced features realize multi-channel measurement anytime, anywhere Expandable from the standard 20-channel configuration to a maximum of 200 channels All channels feature insulated and multi-function inputs The GL800 is a compact data logger, with an A5 footprint, providing excellent portability. All channels are isolated channel-to-channel and channel-to-ground. It has the ability to perform simultaneous measurement of voltage , temperature and humidity. It also supports such inputs as pulse (e.g. power, rpm and flow) and logic, in addition to voltage and t temperature. Record directly to USB memory The new LOGGER is compatible with high-capacity USB memory devices and also features 12 MB of internal flash memory.

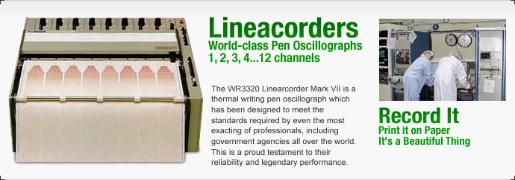

Graphtec Lineacorders and Servo Corders

The Linearcorder Mark VII is capable of recording high-speed phenomena of up to 140 Hz, and can therefore be used
for a wide range of applications - from production sites to the laboratory. The WR3320 can be configured as a 1-, 2-, 3-,
4- or 6-channel recorder with an amplitude of 80 mm. per channel or as a 2-, 4-,6-, 8-, or 12-channel recorder with an
amplitude of 40 mm. per channel.

Continuous Recording Up to 200 Meters
Both roll and Z-fold paper can be used with the WR3320. 100 meter lengths stock inside the recorder, while an optional
Z-fold chart supply box with a take-up tray enables the use of 200 meter lengths. Roll paper can be rewound simply by
pressing the REWIND switch, and an automatic roll chart take-up unit is available as an option.

Multiple Remote Control Functions
Remote control functions such as pen heat on/off, chart feed start/stop, synchronization with an external pulse, output of
paper-end signal, input of event marker signals, and input/output of time marker signals enable automated, unmanned
operation.

1 V d.c. Reference Voltage Output
Rear panel reference voltage output connectors enable easy calibration whenever plug-in units have been exchanged.
The reference voltage output used for calibration is 1 V d.c.

Options
These include a roll chart take-up unit, alphanumeric printing along the chart edge, rack-mount brackets, and 1/2, 1/10,
1/20 of the standard chart speeds.

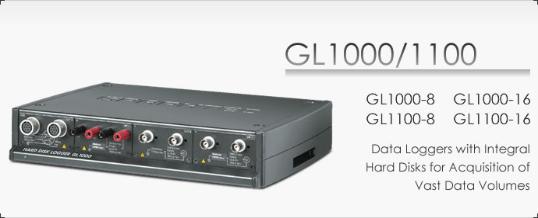

Graphtec Hard Disk Logger

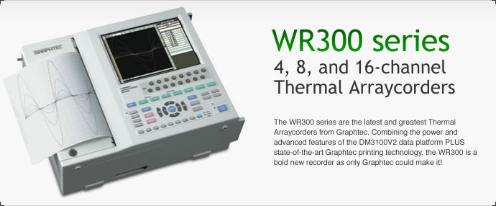

Thermal Array Corders

Advanced Features...But Easy On Your Wallet
The WR300 Series Thermal Array corders are economical waveform recorders available in 4, 8 and 16 channel
configurations. Unlike old-fashioned paper-only recorders, the WR300 series are 21st century technology through and
through. In fact, this unit is nothing less than a single-box version of the ultra-modern DM3100V2 with the screen and
printer built in!

And it offers convenient 2-channel plug-in modules that adapt the WR300 to a wide variety of input types and sensors,
including voltages up to 500 V, strain gages, thermocouples, frequency/RPM signals, and more. There's also a logic input
amp which offers the same number of inputs as the base machine (4, 8, or 16).
